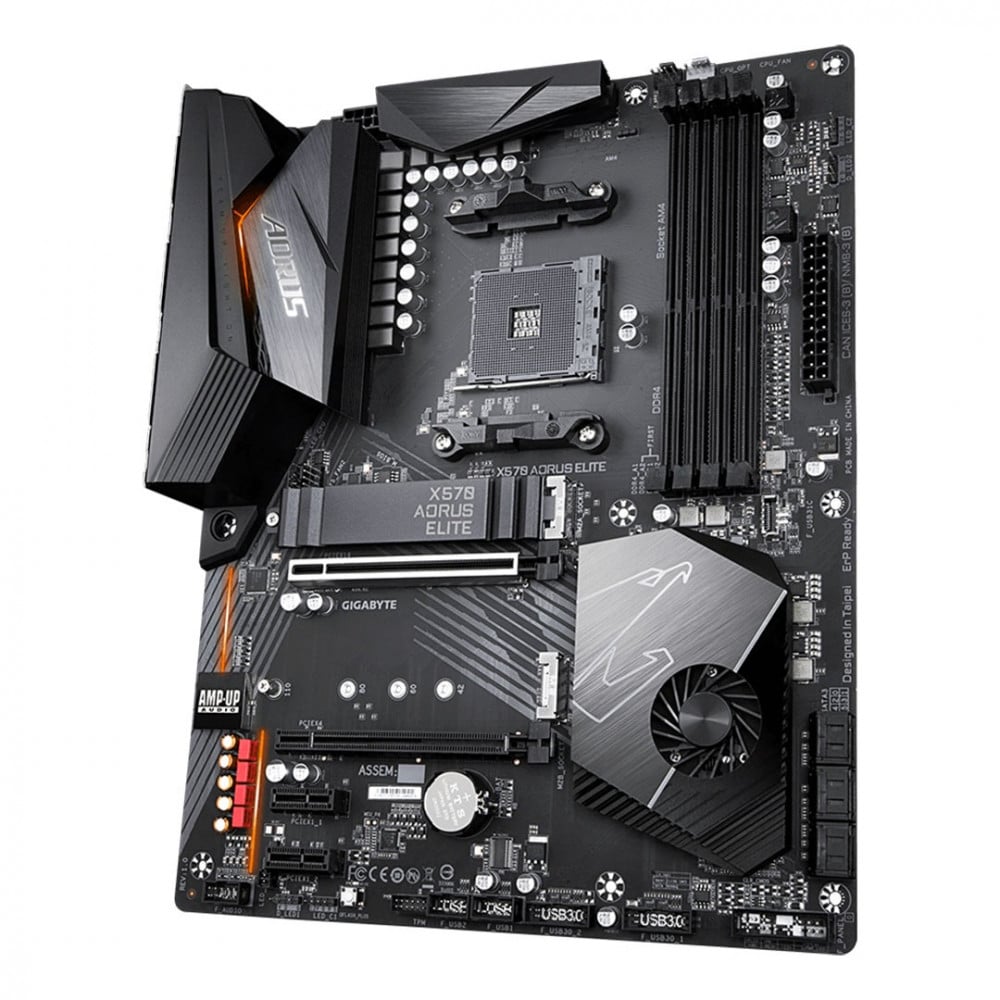

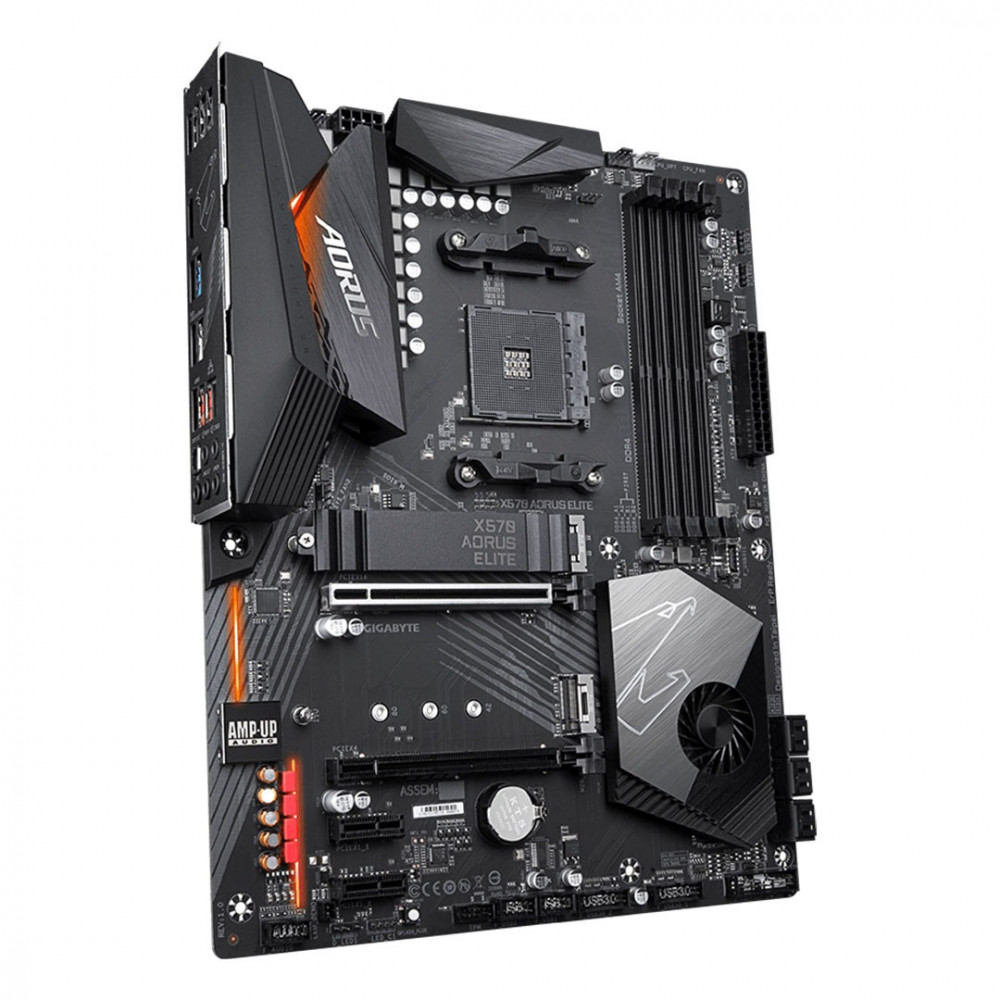

Name: X570 AORUS ELITE مذربورد
SKU: x570-aorus-elite/p1155258573
Price: 1100 SAR
Availability: OutOfStock

AMD X570 AORUS Motherboard with 12+2 Phases Digital VRM with DrMOS, Advanced Thermal Design with Enlarge Heatsink, Dual PCIe 4.0 M.2 with Single Thermal Guard, Intel® GbE LAN with cFosSpeed, Front USB Type-C, RGB Fusion 2.0

مواصفات المنتج :

Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ with Radeon™ Vega Graphics Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
12+2 Phases Digital VRM Solution with DrMOS
Advanced Heatsink Design with Enlarge Heatsink
Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Single Thermal Guard
High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
Intel® Gigabit LAN with cFosSpeed Internet Accelerator
RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips
Smart Fan 5 features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Front USB 3.1 Gen2 Type-C™ Header & HDMI 2.0 support
Integrated I/O Shield Armor
Q-Flash Plus update BIOS Without Installing CPU, Memory and Graphics card

مواصفات أكثر :

CPU

AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ with Radeon™ Vega Graphics Processors

(Please refer "CPU Support List" for more information.)
Chipset

AMD X570

Memory

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
* ECC memory (ECC mode) support varies by CPU
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor:

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version, HDCP 2.2, and HDR.

Maximum shared memory of 16 GB
Audio

Realtek® ALC1200 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

LAN

Intel® GbE LAN chip (10/100/1000 Mbit)

Expansion Slots
Integrated in the CPU (PCIEX16):
· AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ Processors:

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

· AMD Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ 2nd Gen Ryzen™ Processors:

1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

· 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:

1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8

Integrated in the Chipset (PCIEX4/PCIEX1):

1 x PCI Express x16 slot, supporting PCIe 4.0/3.0 and running at x4 (PCIEX4)
2 x PCI Express x1 slots, supporting PCIe 4.0/3.0

Multi-Graphics Technology

Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

Note: For AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™ Processors only.
Storage Interface
Integrated in the CPU (M2A_SOCKET):
· AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ Processors:

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support)

· AMD Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ 2nd Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ with Radeon™ Vega Graphics Processors:

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)

Integrated in the Chipset (M2B_SOCKET):

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0/3.0 x4/x2 SSD support)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10

USB
Integrated in the CPU:

4 x USB 3.2 Gen 1 ports on the back panel

Chipset:

1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
4 x USB 3.2 Gen 1 ports available through the internal USB headers

Chipset+2 USB 2.0 Hubs:

8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
2 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
2 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C™ port, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper
1 x Q-Flash Plus button

＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

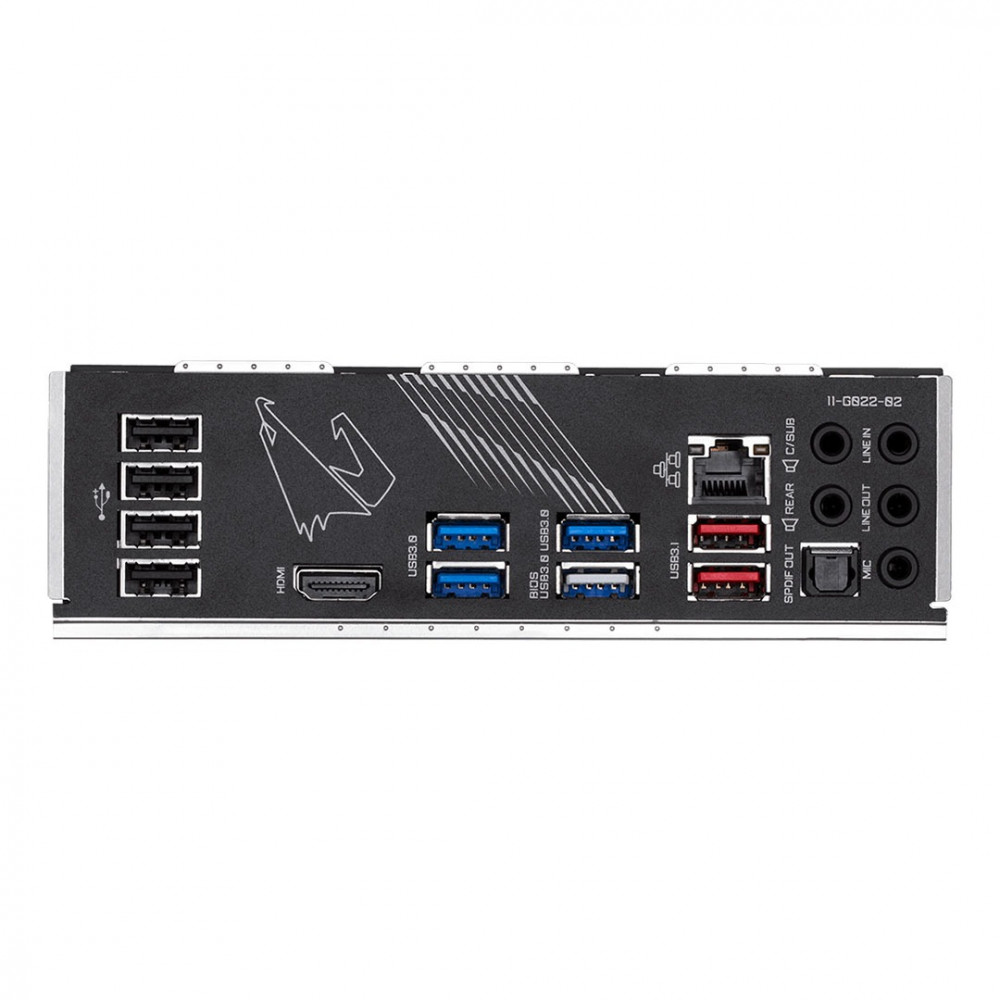

Back Panel Connectors

4 x USB 2.0/1.1 ports
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 3.2 Gen 2 Type-A ports (red)
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.

BIOS

1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
