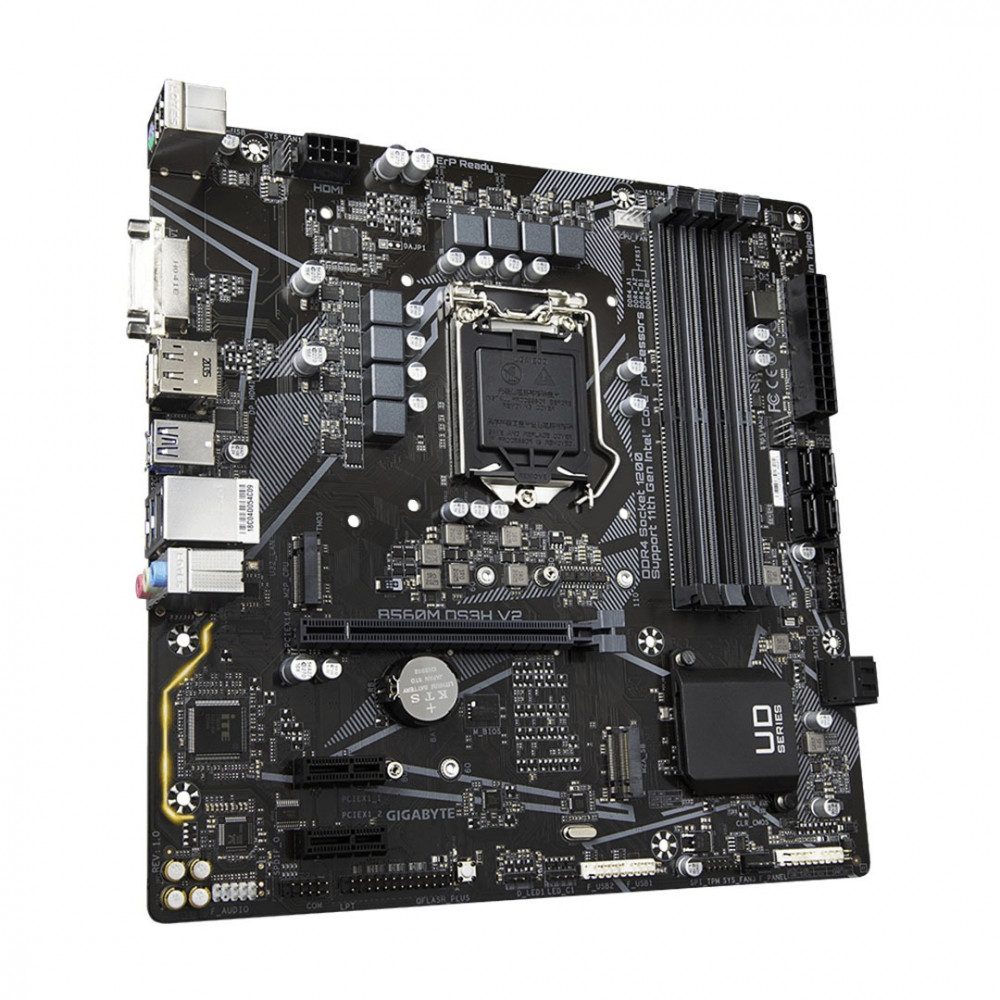

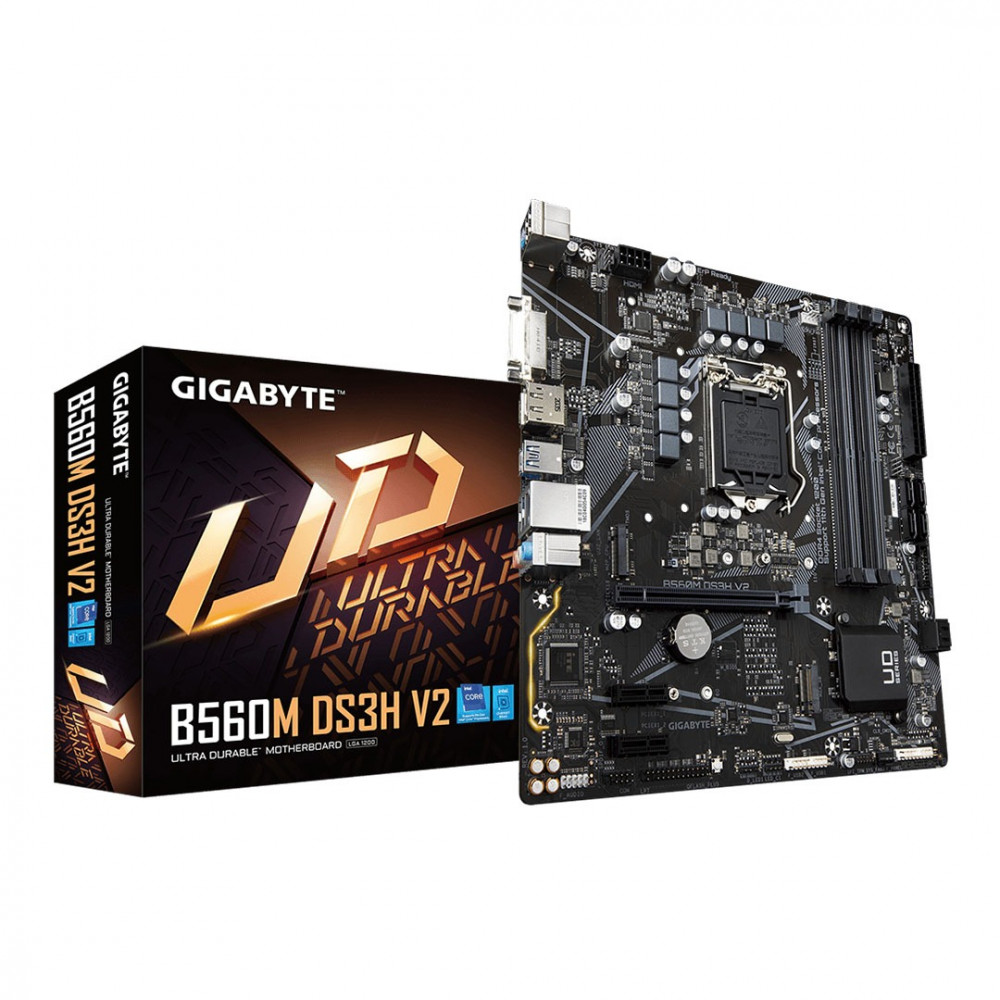

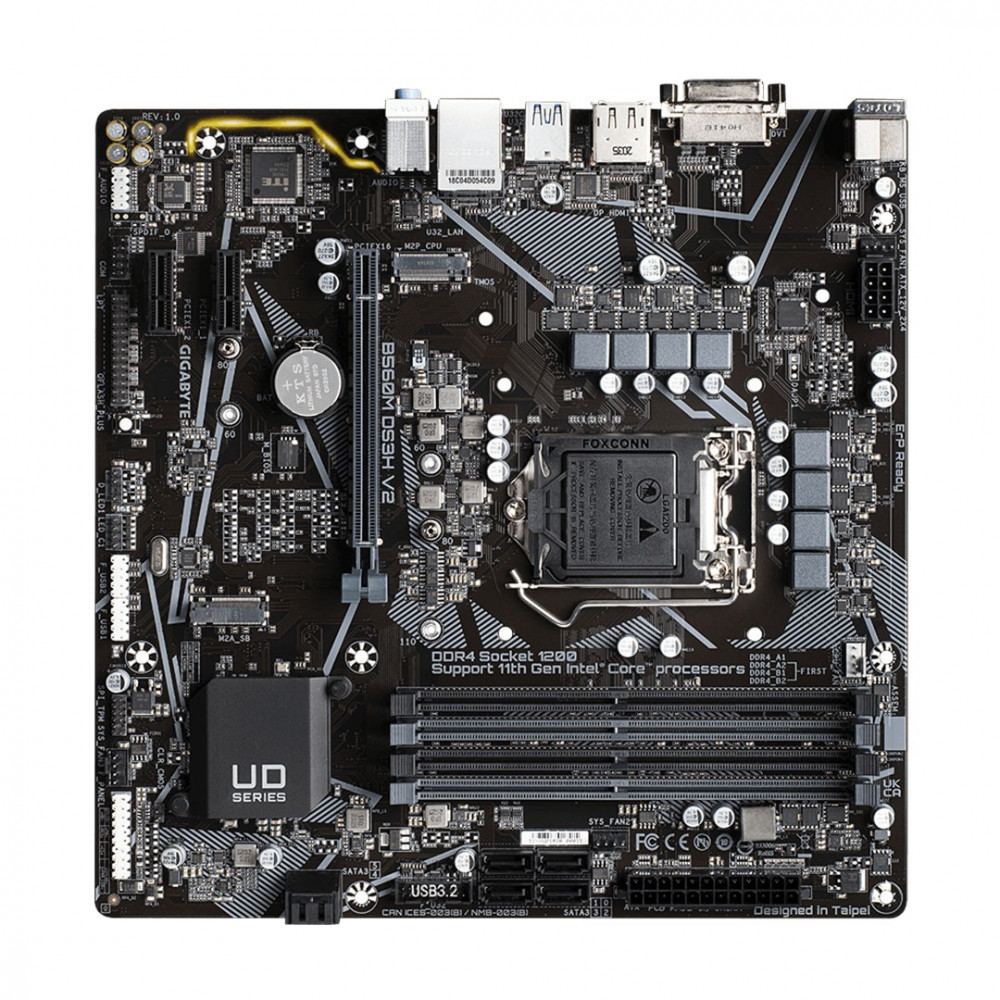

Intel® B560 Ultra Durable Motherboard with Direct 6+2 Phases Digital VRM, Full PCIe 4.0* Design, PCIe 4.0 M.2, GIGABYTE 8118 Gaming LAN, 8-ch HD Audio with Audio Caps, USB TYPE-C® , RGB FUSION 2.0, Q-Flash Plus

مواصفات المنتج :

• Supports 11th and 10th Gen Intel®  Core™ Series Processors
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
• Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs
• Dual Ultra-Fast NVMe PCIe 4.0/3.0* x4 M.2
• GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
• USB 3.2 Gen1 Type-C® for Fast and Versatile Connections
• High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
• RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
• Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
• Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

مواصفات أكثر :

• CPU
• LGA1200 package:

1. 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
2. 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*
3. * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
4. L3 cache varies with CPU

• (Please refer to "CPU Support List" for more information.)
• Chipset

1. Intel® B560 Express Chipset

• Memory

1. 11th Generation Intel® Core™ i9/i7/i5 processors:
2. Support for DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
3. 10th Generation Intel® Core™ i9/i7 processors:
4. Support for DDR4 2933/2666/2400/2133 MHz memory modules
5. 10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
6. Support for DDR4 2666/2400/2133 MHz memory modules
7. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
8. Dual channel memory architecture
9. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
10. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
11. Support for Extreme Memory Profile (XMP) memory modules

• (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)
• Onboard Graphics
• Integrated Graphics Processor-Intel® HD Graphics support:

1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
2. * The DVI-D port does not support D-Sub connection by adapter.
3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
4. * Support for DisplayPort 1.2 version and HDCP 2.3
5. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
6. * Support for HDMI 1.4 version and HDCP 2.3.
7. (Graphics specifications may vary depending on CPU support.)

• Support for up to 3 displays at the same time
• Audio

1. Realtek® Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first.

• LAN

1. Realtek® GbE LAN chip (1 Gbps/100 Mbps)

• Expansion Slots

1. 1 x PCI Express x16 slot, running at x16
2. (The PCIEX16 slot conforms to PCI Express 4.0 standard.)(Note)
3. 2 x PCI Express x1 slots
4. (The PCIEX1 slot conforms to PCI Express 3.0 standard.)

• (Note) Supported by 11th Generation processors only.
• Storage Interface
• CPU:

1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)(Note)

• Chipset:

1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB)
2. 6 x SATA 6Gb/s connectors
3. * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

• Intel® Optane™ Memory Ready
• * System acceleration with Intel® Optane™ Memory can only be enabled on the M2P_CPU connector and with an 11th Generation Intel® processor installed.
•

• (Note) Supported by 11th Generation processors only.
• USB
• Chipset:

1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
2. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
3. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

• Chipset+USB 2.0 Hub:

1. 2 x USB 2.0/1.1 ports available through the internal USB headers

• Internal I/O Connectors

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 3 x system fan headers
5. 1 x addressable LED strip header
6. 1 x RGB LED strip header
7. 6 x SATA 6Gb/s connectors
8. 2 x M.2 Socket 3 connectors
9. 1 x front panel header
10. 1 x front panel audio header
11. 1 x USB 3.2 Gen 1 header
12. 2 x USB 2.0/1.1 headers
13. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
14. 1 x serial port header
15. 1 x parallel port header
16. 1 x Clear CMOS jumper
17. 1 x Q-Flash Plus button

• ＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

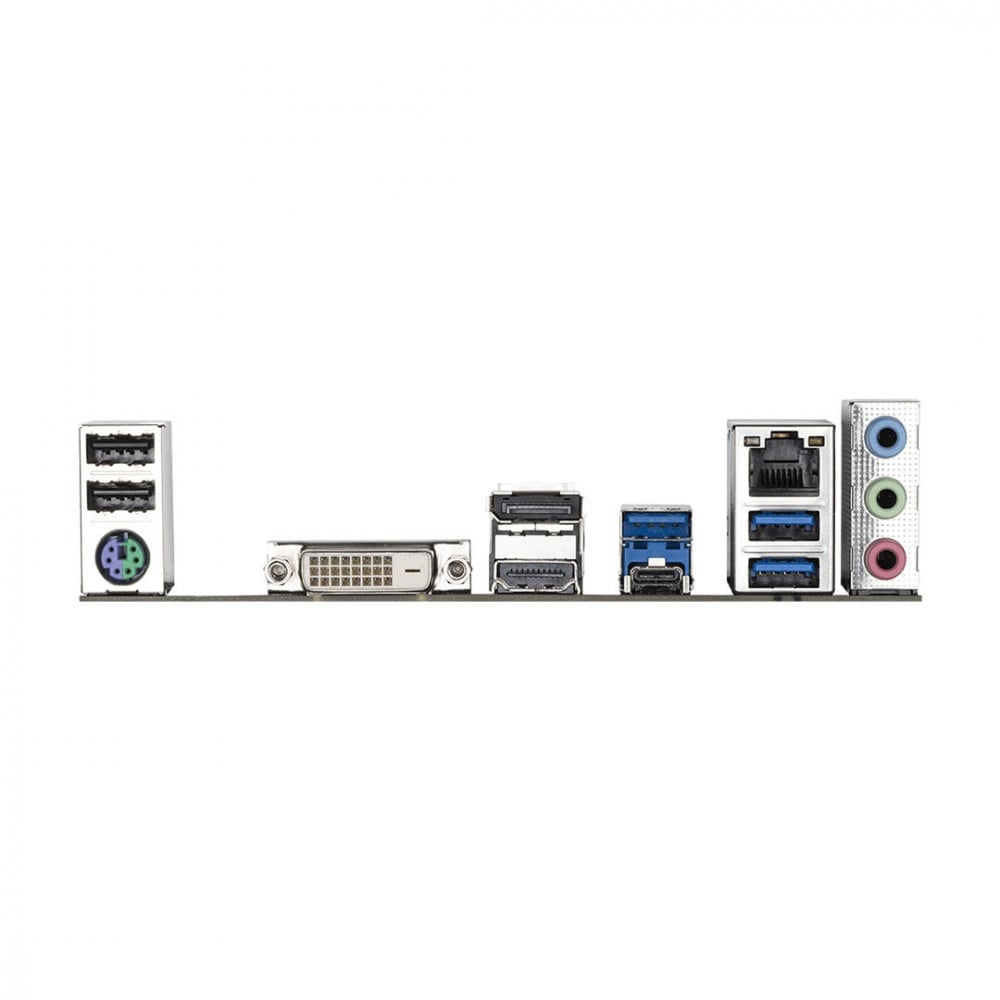

• Back Panel Connectors

1. 2 x USB 2.0/1.1 ports
2. 1 x PS/2 keyboard/mouse port
3. 1 x DVI-D port
4. 1 x DisplayPort
5. 1 x HDMI port
6. 3 x USB 3.2 Gen 1 ports
7. 1 x USB Type-C® port, with USB 3.2 Gen 1 support
8. 1 x RJ-45 port
9. 3 x audio jacks

• I/O Controller

1. iTE® I/O Controller Chip

• H/W Monitoring

1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Fan fail warning
5. Fan speed control
6. * Whether the fan speed control function is supported will depend on the fan you install.

• BIOS

1. 1 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features

1. Support for APP Center
2. * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3. @BIOS
4. EasyTune
5. Fast Boot
6. Game Boost
7. ON/OFF Charge
8. RGB Fusion
9. Smart Backup
10. System Information Viewer
11. Support for Q-Flash Plus
12. Support for Q-Flash
13. Support for Xpress Install

• Bundled Software

1. Norton® Internet Security (OEM version)
2. Realtek® 8118 Gaming LAN Bandwidth Control Utility

• Operating System

1. Support for Windows 10 64-bit

• Form Factor

1. Micro ATX Form Factor; 24.4cm x 24.4cm
