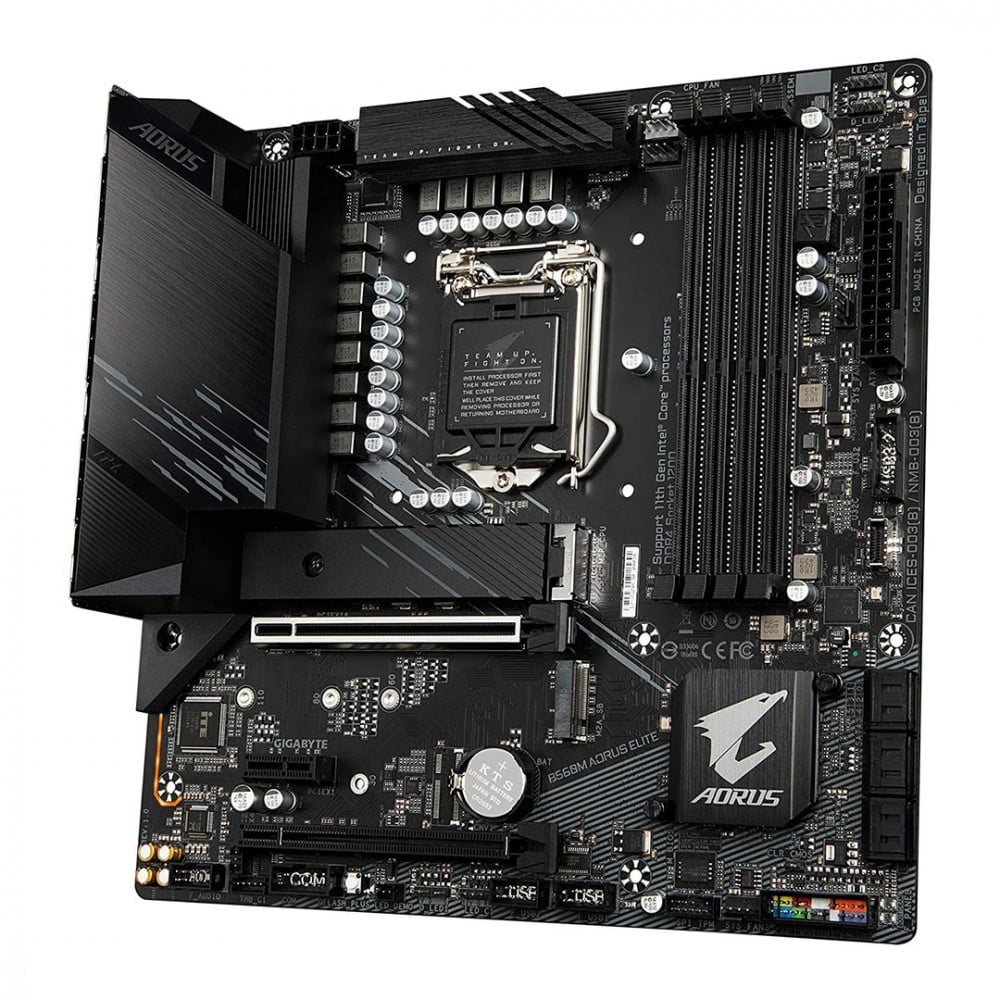

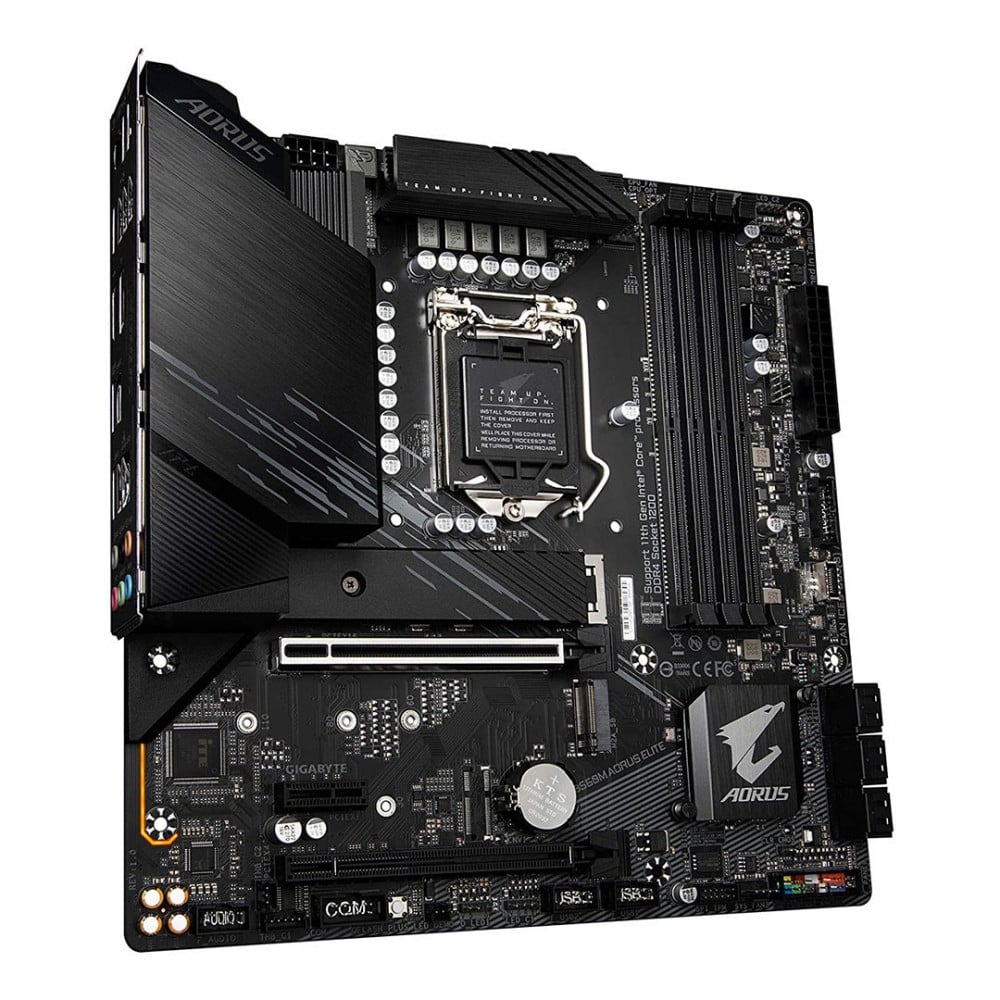

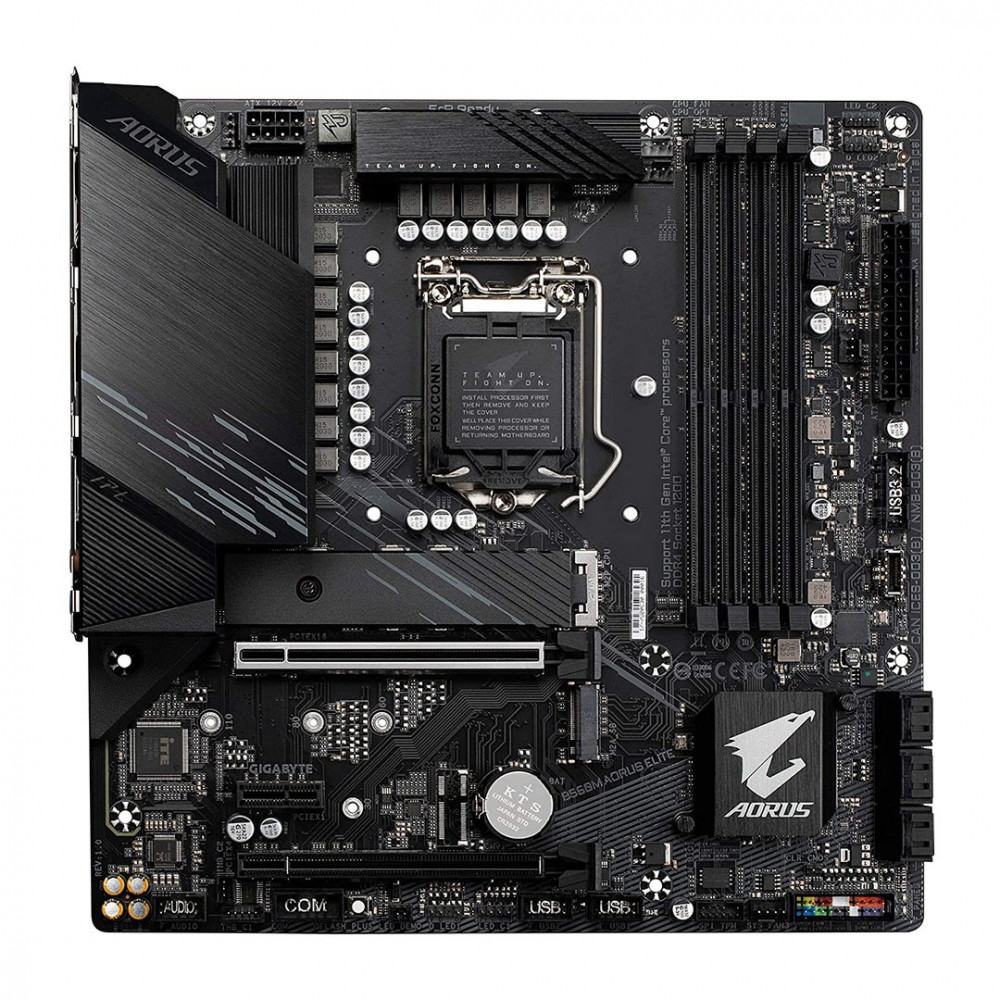

مواصفات المنتج :

• Supports 11th and 10th Gen Intel® Core™ Series Processors
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
• Direct 12+1 Phases Digital VRM with Low RDS(on) MOSFETs
• Shielded Memory Routing for Better Memory Overclocking
• Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
• Fast 2.5GbE LAN with Bandwidth Management
• Dual Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Thermal Guard
• Rear USB 3.2 Gen2 Type-C® and Front USB3.2 Gen1 Type-C® for Connecting Devices
• Pre-installed IO Shield for Easy and Quick Installation
• RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
• Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
• Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
•


مواصفات أكثر :

• CPU
• LGA1200 package:

1. 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
2. 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*
3. * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
4. L3 cache varies with CPU

• (Please refer to "CPU Support List" for more information.)
• Chipset

1. Intel® B560 Express Chipset

• Memory

1. 11th Generation Intel® Core™ i9/i7/i5 processors:
2. Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
3. 10th Generation Intel® Core™ i9/i7 processors:
4. Support for DDR4 2933/2666/2400/2133 MHz memory modules
5. 10th Generation Intel® Core™ i5/i3 /Pentium®/Celeron® processors:
6. Support for DDR4 2666/2400/2133 MHz memory modules
7. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
8. Dual channel memory architecture
9. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
10. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
11. Support for Extreme Memory Profile (XMP) memory modules

• (Please refer "Memory Support List" for more information.)
• Onboard Graphics
• Integrated Graphics Processor-Intel® HD Graphics support:

1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
2. * Support for HDMI 1.4 version and HDCP 2.3.
3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
4. * Support for DisplayPort 1.2 version, HDCP 2.3

• (Graphics specifications may vary depending on CPU support.)
• Audio

1. Realtek® Audio codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel

• LAN

1. Realtek®2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

• Expansion Slots

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
2. * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
3. (The PCIEX16 slot conforms to PCI Express 4.0 standard.)*
4. *Supported by 11th Generation processors only.
5. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
6. 1 x PCI Express x1 slot
7. (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)

• Multi-Graphics Technology

1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

• Storage Interface
• CPU:

1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)*
2. * Supported by 11th Generation processors only.

• Chipset:

1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)

• 6 x SATA 6Gb/s connectors
• * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
• Intel® Optane™ Memory Ready
• USB
• Chipset:

1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen2 support
2. 1 x USB 3.2 Gen2 Type-A ports (red) on the back panel
3. 3 x USB 3.2 Gen1 ports (2 ports on the back panel, 1 port available through the internal USB header)
4. 2 x USB 2.0/1.1 ports on the back panel

• Chipset+USB 3.2 Gen 1 Hub:

1. 1 x USB Type-C® port with USB 3.2 Gen1 support, available through the internal USB header
2. 2 x USB 3.2 Gen1 ports available through the internal USB header

• Chipset+ 2 USB 2.0 Hubs:

1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

• Internal I/O Connectors

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x water cooling CPU fan header
5. 3 x system fan headers
6. 2 x addressable LED strip headers
7. 2 x RGB LED strip headers
8. 6 x SATA 6Gb/s connectors
9. 2 x M.2 Socket 3 connectors
10. 1 x front panel header
11. 1 x front panel audio header
12. 1 x USB Type-C® header, with USB 3.2 Gen 1 support
13. 1 x USB 3.2 Gen 1 header
14. 2 x USB 2.0/1.1 headers
15. 2 x Thunderbolt™ add-in card connectors
16. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
17. 1 x serial port header
18. 1 x Clear CMOS jumper
19. 1 x Q-Flash Plus button

• ＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

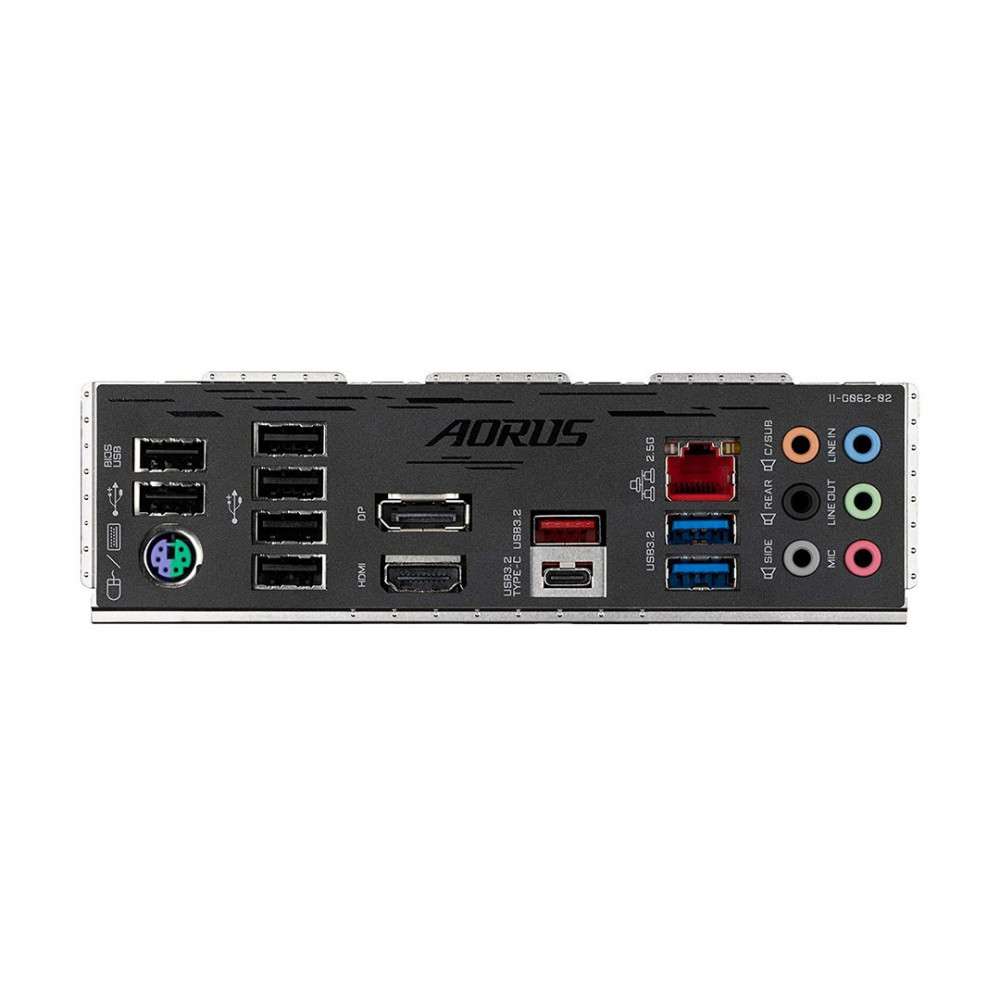

• Back Panel Connectors

1. 1 x PS/2 keyboard/mouse port
2. 1 x USB Type-C® port, with USB 3.2 Gen2 support
3. 1 x USB 3.2 Gen2 Type-A port (red)
4. 2 x USB 3.2 Gen1 ports
5. 6 x USB 2.0/1.1 ports
6. 1 x DisplayPort
7. 1 x HDMI port
8. 1 x RJ-45 port
9. 6 x audio jacks

• I/O Controller

1. iTE® I/O Controller Chip

• H/W Monitoring

1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Fan fail warning
6. Fan speed control
7. * Whether the fan speed control function is supported will depend on the cooler you install.

• BIOS

1. 1 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features

1. Support for APP Center
2. * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3. @BIOS
4. EasyTune
5. Fast Boot
6. Game Boost
7. ON/OFF Charge
8. RGB Fusion
9. Smart Backup
10. System Information Viewer
11. Support for Q-Flash Plus
12. Support for Q-Flash
13. Support for Xpress Install

• Bundled Software

1. Norton® Internet Security (OEM version)
2. Realtek® 8125 Gaming LAN Bandwidth Control Utility

• Operating System

1. Support for Windows 10 64-bit

• Form Factor

1. Micro ATX Form Factor; 24.4cm x 24.4cm
