مواصفات المنتج :

• Supports 10th Gen Intel^® Core™ Processors and 11th Gen Intel^® Core™ Processors
• 10 Phase Dr.MOS Power Design
• Supports DDR4 4800MHz (OC)
• 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x1, 1 x M.2 Key-E for WiFi
• Graphics Output Options: HDMI, DisplayPort
• 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
• 6 SATA3, 1 x Hyper M.2 (PCIe Gen4 x4)
• 1 x Ultra M.2 (PCIe Gen3 x4 & SATA3)
• 1 x Front USB 3.2 Gen2x2 Type-C (20 Gb/s)
• 6 x USB 3.2 Gen1 (4 x Rear, 2 x Front)
• 6 x USB 2.0 (2 x Rear, 4 x Front)
• Dragon 2.5 Gigabit LAN

مواصفات أكثر :

• Unique Feature
• ASRock USB 3.2 Gen2
• - ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
• ASRock Super Alloy
• - XXL Aluminum Alloy Heatsink
• - Premium 60A Power Choke
• - 50A Dr.MOS
• - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
• - Matte Black PCB
• - High Density Glass Fabric PCB
• 2.5G LAN
• ASRock Steel Slot
• ASRock Full Coverage M.2 Heatsink
• ASRock Hyper M.2 (PCIe Gen4x4)
• ASRock POST Status Checker (PSC)
• ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
• ASRock Live Update & APP Shop
• CPU
• - Supports 10th Gen Intel^® Core™ Processors and 11th Gen Intel^® Core™ Processors (LGA1200)
• - Digi Power design
• - 10 Power Phase design
• - Supports Intel^® Turbo Boost Max 3.0 Technology
• Chipset
• - Intel^® B560
• Memory
• - Dual Channel DDR4 Memory Technology
• - 4 x DDR4 DIMM Slots
• - 11th Gen Intel^® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)*
• - 10th Gen Intel^® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 4666+(OC)*
• - Supports ECC UDIMM memory modules (operate in non-ECC mode)
• - Max. capacity of system memory: 128GB**
• - Supports Intel^® Extreme Memory Profile (XMP) 2.0
• - 15μ Gold Contact in DIMM Slots
•

• *11th Gen Intel^® Core™ (i9/i7/i5) support DDR4 3200 natively; Core™ (i3), Pentium^® and Celeron^® support DDR4 2666 natively.
• 10th Gen Intel^® Core™ (i9/i7) support DDR4 2933 natively; Core™ (i5/i3), Pentium^® and Celeron^® support DDR4 2666 natively.
•

• **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.
• BIOS
• - 128Mb AMI UEFI Legal BIOS with multilingual GUI support
• - ACPI 6.0 Compliant wake up events
• - SMBIOS 2.7 Support
• - CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VCCIO 1 2, VPPM, VCCIN AUX, Voltage Multi-adjustment
• Graphics
• - 11th Gen Intel^® Core™ Processors support Intel^® Xe Graphics Architecture (Gen 12). 10th Gen Intel^® Core™ Processors support Gen 9 Graphics
• - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
• - Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz with 11th Gen Intel^® Core™ Processors
• - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz with 10th Gen Intel^® Core™ Processors
• - Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz
• - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required)
• - Supports HDCP 2.2 with DisplayPort and HDMI Ports (HDCP 2.3 ready with 11th Gen Intel^® Core™ Processors)
•

• *Intel^® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
• Graphics specifications may vary between CPU types.
• Audio
• - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• - Supports Surge Protection
• - Gold Audio Jacks
• - 15μ Gold Audio Connector
• - Nahimic Audio
• LAN
• - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
• - Dragon RTL8125BG
• - Supports Dragon 2.5G LAN Software
• - Smart Auto Adjust Bandwidth Control
• - Visual User Friendly UI
• - Visual Network Usage Statistics
• - Optimized Default Setting for Game, Browser, and Streaming Modes
• - User Customized Priority Control
• - Supports Wake-On-LAN
• - Supports Lightning/ESD Protection
• - Supports Energy Efficient Ethernet 802.3az
• - Supports PXE
• Slots
• 11th Gen Intel^® Core™ Processors
• - 1 x PCI Express 4.0 x16 Slot*
• 10th Gen Intel^® Core™ Processors
• - 1 x PCI Express 3.0 x16 Slot*
•

• - 2 x PCI Express 3.0 x1 Slots
• - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel^® CNVi (Integrated WiFi/BT)
• - 15μ Gold Contact in VGA PCIe Slot (PCIE1)
•

• *Supports NVMe SSD as boot disks
• Storage
• - 6 x SATA3 6.0 Gb/s Connectors, support Intel^® Rapid Storage Technology 18, NCQ, AHCI and Hot Plug*
• - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen4 x4 (64 Gb/s) (with 11th Gen Intel^® Core™ Processors) or Gen3 x4 (32 Gb/s) (with 10th Gen Intel^® Core™ Processors)**
• - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
•

• *If M2_2 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled.
•

• **M2_1 supports Intel^® Optane™ Technology (with 10th Gen Intel^® Core™ Processors)
• Supports NVMe SSD as boot disks
• Supports ASRock U.2 Kit
• Connector
• - 1 x SPI TPM Header
• - 1 x Chassis Intrusion and Speaker Header
• - 2 x RGB LED Headers*
• - 2 x Addressable LED Headers**
• - 1 x CPU Fan Connector (4-pin)***
• - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
• - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
• - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
• - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
• - 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
• - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
• - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
• - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)
•

• *Support in total up to 12V/3A, 36W LED Strip
•

• **Support in total up to 5V/3A, 15W LED Strip
•

• ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
•

• ****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
•

• *****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
• CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.

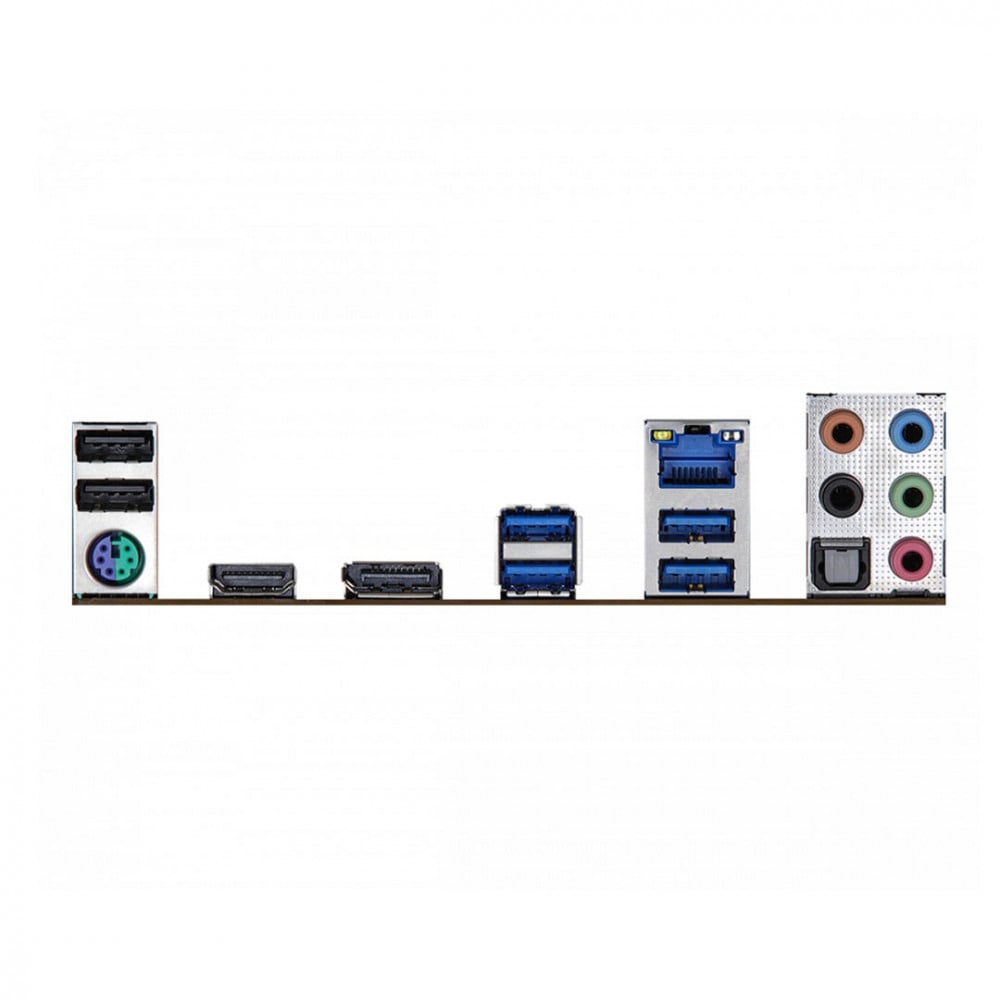

• Rear Panel I/O
• - 3 x Antenna Mounting Points
• - 1 x PS/2 Mouse/Keyboard Port
• - 1 x HDMI Port
• - 1 x DisplayPort 1.4
• - 1 x Optical SPDIF Out Port
• - 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection)
• - 2 x USB 2.0 Ports (Supports ESD Protection)
• - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
• Software and UEFI
• Software
• - ASRock Motherboard Utility (A-Tuning)
• - ASRock Dragon 2.5G LAN Software
• - ASRock Polychrome SYNC*
• UEFI
• - ASRock EZ Mode
• - ASRock Full HD UEFI
• - ASRock My Favorites in UEFI
• - ASRock Instant Flash
• - ASRock Internet Flash
•

• *These utilities can be downloaded from ASRock Live Update & APP Shop.
• Support CD
• - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
• Accessories
• - Quick Installation Guide, Support CD, I/O Shield
• - 2 x SATA Data Cables
• - 3 x Screws for M.2 Sockets
• - 1 x Standoff for M.2 Socket
• Hardware Monitor
• - Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
• - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
• - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
• - CASE OPEN detection
• - Voltage monitoring: CPU Vcore, VCCIN AUX, DRAM, VCCIO, VPPM, VCCSA, CPU PLL, +12V, +5V, +3.3V
• Form Factor
• - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
• OS
• - Microsoft^® Windows^® 10 64-bit / 11 64-bit
• Certifications
• - FCC, CE
• - ErP/EuP ready (ErP/EuP ready power supply is required)
